Torsion bar Springs

Torsion bar springs itself is a torsion bar made of spring steel.



Torsion bar Springs

Torsion bar springs itself is a torsion bar made of spring steel.

The end face of the torsion bar is usually round, and a few are rectangular and tubular. The shape of the two ends can be made into splines, squares, hexagons or cylindrical shapes with a plane, so that one end is fixed on the frame, The Torsion bar springs other end is fixed on the swing arm of the suspension, and the swing arm is connected with the wheel.

What material is used for torsion spring

A torsion spring is a component made from elastic material that, when twisted, exerts a moment resisting the rotation. Common types of torsion spring include helical torsion springs, torsion bars, and spiral wound torsion springs.

How to check the torsion bar spring

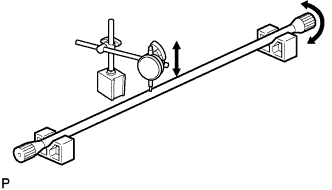

1、Use V blocks and a dial indicator to check the runout of the torsion bar spring.
2、Maximum :2.0 mm (0.079 in.)
     Set the dial indicator perpendicular to the middle of the torsion bar spring.
     If the value is not within the specified range, replace the torsion bar spring with a new one.

Torsion bar Springs

Professional Torsion bar Springs manufacturer - MASITE AUTO PARTS

A torsion bar is a type of suspension system that is typically used in wheeled vehicles such as cars, vans and trucks.


torsion bar, rod or bar that resists twisting and has a strong tendency to return to its original position when twisted.


In automobiles a torsion bar is a long spring-steel element with one end held rigidly to the frame and the other end twisted by a lever connected to the axle.

Masite Torsion Bar Factory

MASITE Auto parts co., ltd covers an area of 4 thousand square meters and buiding area is more than 50 thousand square meters, is one of the main local manufacturers of automobile torsion bar suspension assembly and cab flip institutions torsion bar.
We obtain the 2004 international quality management system certificate ISO/TS16949 and put into standardized operation.
We mainly design and manufacture automobile torsion bar spring assemblies and stabilizer bars based on our standard, modern, spacious and bright workshops, first-rate production process equipment and advanced and complete testing equipment.

Torsion Bar Workshop

Torsion Bar Testing Equipment
